Concrete Technology: A Comprehensive Guide

Concrete technology is a specialized field of civil engineering that deals with the study, design, development, and application of concrete materials. It encompasses various aspects of concrete, including its composition, properties, production methods, testing procedures, and applications in construction projects.

What is Concrete?

Concrete is a composite material that is widely used in construction due to its versatility, durability, and strength. It is typically composed of a mixture of cement, aggregates (sand and gravel), water, and sometimes chemical admixtures. When these components are combined and allowed to cure, they form a hard, durable material that is suitable for a wide range of applications.

Materials Used to Make Concrete

The primary materials used in the production of concrete are:

Cement: The binding agent that holds the other components together. Common types of cement include Portland cement, blended cement, and specialized cements for specific applications.
Aggregates: These provide strength and durability to the concrete. They are classified as fine aggregates (sand) and coarse aggregates (gravel).
Water: Used to hydrate the cement and initiate the chemical reaction that forms the concrete.
Chemical admixtures: These are added to modify the properties of the concrete, such as its setting time, workability, and strength.

How Concrete is Made

The process of making concrete involves the following steps:

Batching: The required quantities of cement, aggregates, water, and admixtures are measured and combined in a batching plant.
Mixing: The materials are thoroughly mixed in a concrete mixer until a uniform consistency is achieved.

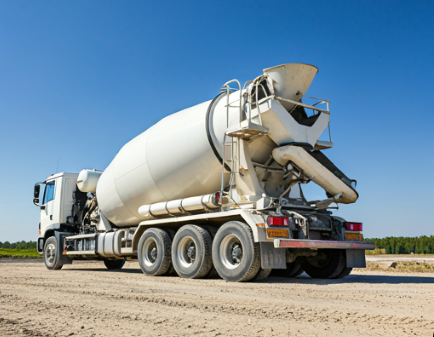

Transport: The mixed concrete is transported to the construction site using trucks or other suitable equipment.
Placing: The concrete is poured into forms or molds to create the desired shape.
Compacting: The concrete is compacted to remove air voids and ensure a dense, strong material.
Curing: The concrete is allowed to harden over time, a process known as curing. This involves maintaining a moist environment to prevent the concrete from drying out too quickly.

Concrete Mix Ratios and Their Strengths

The strength of concrete is determined by the proportions of its constituent materials, which are referred to as the mix ratio. Common mix ratios and their corresponding strengths in N/mm² are:

1:2:4: 1 part cement, 2 parts sand, 4 parts coarse aggregate (approximately 20-25 N/mm²)
1:1.5:3: 1 part cement, 1.5 parts sand, 3 parts coarse aggregate (approximately 30-35 N/mm²)
1:1:2: 1 part cement, 1 part sand, 2 parts coarse aggregate (approximately 40-45 N/mm²)
1:0.5:1: 1 part cement, 0.5 part sand, 1 part coarse aggregate (approximately 50-60 N/mm²)

Applications of Various Classes of Concrete Mix Ratios in the Construction Industry

Different classes of concrete mix ratios are used for various applications based on their strength requirements:

Low-strength concrete (1:2:4): Foundations, footings, and non-load-bearing structures.
Medium-strength concrete (1:1.5:3): Slabs, columns, and beams in residential and commercial buildings.
High-strength concrete (1:1:2): Bridge decks, parking garages, and other structures requiring high load-bearing capacity.
Very high-strength concrete (1:0.5:1): Specialized applications such as precast concrete elements and underwater structures.

How to Test for Strength of a Particular Concrete Mix

The strength of a concrete mix is typically determined through compressive strength testing. This involves casting concrete cylinders or cubes, allowing them to cure for a specified period, and then subjecting them to a compressive load until they fail. The maximum load applied before failure is used to calculate the compressive strength of the concrete.

Signs of Inadequate Concrete Mix

Several signs can indicate an inadequate concrete mix, including:

Low compressive strength: The concrete may not be able to withstand the intended loads.
Cracking: Cracks may appear in the concrete due to inadequate curing or poor mixing.
Honeycombing: Voids or holes may form in the concrete due to improper compaction.
Bleeding: Water may separate from the concrete mixture and accumulate on the surface.

Time Taken for Concrete to Harden

The time required for concrete to harden depends on various factors, including the type of cement used, the environmental conditions, and the curing method. Generally, concrete reaches sufficient strength for most applications within 28 days. However, it may take longer to achieve full strength, especially in colder climates.

Signs of Failure in Concrete

Signs of failure in concrete include:

Cracking: Cracks may indicate structural damage or deterioration.
Spalling: The concrete may flake or chip away.
Corrosion: Reinforcement steel within the concrete may corrode, leading to structural weakness.
Deflection: The concrete may sag or deform under load.

Additives to Concrete for Specific Applications

Various additives can be added to concrete to modify its properties for specific applications:

Water-reducing admixtures: Reduce the amount of water required for a given workability, resulting in stronger concrete.
Retarders: Slow down the setting time of concrete, allowing for better placement and finishing.
Accelerators: Speed up the setting time of concrete, which can be beneficial in cold weather conditions.
Superplasticizers: Significantly increase the workability of concrete without increasing water content, resulting in high-strength concrete.
Air-entraining admixtures: Introduce air voids into the concrete, improving its resistance to freeze-thaw cycles and reducing shrinkage.
Integral waterproofing admixtures: Improve the water resistance of concrete, making it suitable for underwater structures and other applications.

By understanding the principles of concrete technology, engineers can design and construct durable, reliable concrete structures that meet the demands of modern construction projects.
